PVC Foam Board vs Plywood: What Belongs in a Bathroom, Balcony and Utility
We sell both. That is worth saying at the top, because most of what is written on this question is written by someone who sells one.
Plywood is the right material for most of a house. PVC foam board is the right material for a small, specific and expensive part of it — the part that keeps coming back as a complaint two monsoons after handover. This is where the line sits, and where PVC foam board is the wrong answer.
The short answer
- Plywood owns dry interiors. Wardrobes, bookshelves, loaded shelving, anything that spans, anything that carries weight. Nothing in this article changes that.
- PVC foam board owns wet and termite-exposed. Under-sink cabinets, bathroom vanities, balcony and utility joinery, the bottom 300 mm of anything that lives near standing water.
- PVC foam board loses on stiffness, heat and thermal movement. It is roughly half as stiff as plywood, it softens around 70°C, and it moves with temperature about ten times as much as wood does. Specify it for a long shelf and it will sag.
If you take one thing from this: it is not a better board. It is a different board, and the zone decides.

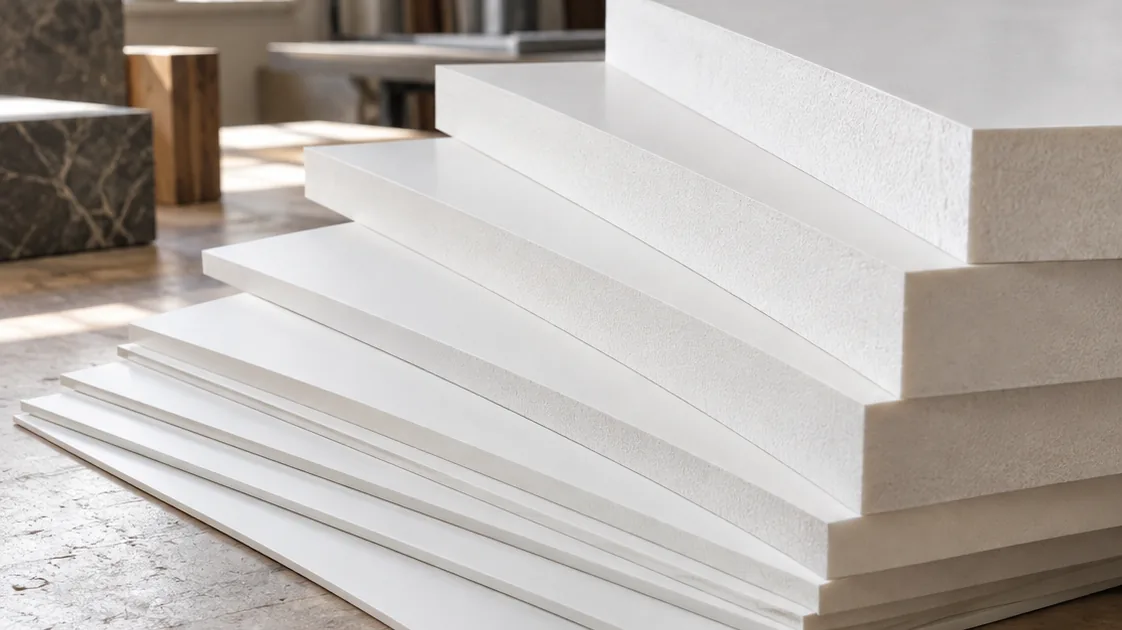

What PVC foam board actually is
Rigid closed-cell PVC, foamed and extruded into a sheet with a dense skin and a lighter core. No wood, no fibre, no glue line — which is the whole point. There is nothing in it for water to swell, for a resin to release, or for a termite to eat.
What we carry:
| Thickness | 2.5 mm to 24 mm |
| Sheet size | 8 × 4 ft (2440 × 1220 mm) |
| Density | 550–700 kg/m³ |
| Finish | Paintable, laminable, edge-bandable |
The thin end of that range matters more than people expect. At 2.5–5 mm the board is a substrate — shutter inserts, curved forms, backing behind a laminate, anywhere you want a sheet that will not warp and does not need to carry anything. It is also the end of the range that is hardest to find in depth locally, which is usually why a fabricator ends up specifying something thicker than the job needs.
It works with ordinary joinery tooling. It cuts on a table saw, routs cleanly, and takes screws without pre-drilling in most thicknesses. A fitter who has never handled it will be comfortable within an hour.
Where it genuinely beats plywood
Standing water. This is the real case. Even BWP plywood under IS 710 is wood bonded with a waterproof resin — the bond survives boiling water, the timber still absorbs it. Put a sheet where water pools and is not wiped, and over years it swells from the edge inward. PVC foam board does not absorb water at all, so there is no mechanism for it to swell, delaminate or bloom.
Cut edges. Most plywood failures start at a raw edge that was never sealed, usually the one nobody sees — the bottom edge of a vanity side sitting on a wet floor. PVC foam board has no vulnerable edge. There is nothing to seal and nothing to maintain, which removes a step that in practice gets skipped.
Termites. Not a food source. In parts of Hyderabad where termite pressure is high and the treatment is a recurring cost, that is a real saving on the cabinets that sit closest to the floor.
Weight. Lighter than plywood of the same thickness, which matters for wall-hung units and for anything carried up four floors.
Where it loses — and this is the part that matters
A supplier who only tells you the first list is selling you a callback.
Stiffness. This is the big one. The Indian benchmark for plywood modulus of elasticity is around 6,400 N/mm². Rigid PVC foam board, depending on the foaming process and density, is quoted by manufacturers somewhere in the region of 2,500–3,500 N/mm² — roughly half, and vendor figures vary enough that any single number should be treated as indicative rather than a design value. In practice: a PVC foam board shelf of the same thickness and span as a plywood one will visibly sag under the same load, and it will keep sagging, because plastics creep under sustained load in a way wood does not.
So: no long unsupported spans. No loaded shelving. No bookshelves. If a shelf is over about 600 mm between supports and will carry anything heavier than towels, that is plywood or blockboard, and 19 mm blockboard still holds the straightest line of anything we sell.
Heat. Continuous service tops out around 60°C, with the Vicat softening point around 65–75°C. That rules out anything immediately adjacent to a hob, behind glass in direct afternoon sun, or in an enclosed balcony that bakes. A closed west-facing utility in May is not a theoretical concern in this city.
Thermal movement. Rarely mentioned and the cause of most of the bad installations we hear about. PVC foam board has a coefficient of thermal expansion of roughly 50–80 × 10⁻⁶ per °C — about ten times that of wood along the grain. Across a full 2440 mm sheet, a 25°C swing is three to four millimetres of movement.
Wood moves with moisture. PVC moves with temperature. If you fix a large sheet rigidly at both ends with no allowance, it will bow. Leave an expansion gap on long runs, and do not screw a wide panel down hard along its full length.
Fire. Rigid PVC is self-extinguishing and most imported sheet carries a Class B1 rating under DIN 4102, with a limiting oxygen index well above that of timber. That reads well, but PVC gives off hydrogen chloride when it does burn. For a home, a non-issue. For a commercial fit-out with a written fire specification, ask for the certificate on the specific sheet rather than taking the category rating — and tell us the spec before you order, so we quote something that will pass.
Screw pull-out under repeated load. Fine for a cabinet that gets opened. Not what you want carrying a door that gets slammed a thousand times a year, or a heavy wall-mounted unit on fixings into the board alone rather than into the wall behind.
Thickness to application
| Thickness | Where it earns its place |
|---|---|
| 2.5–3 mm | Shutter inserts, backing sheet behind laminate, curved and formed work |
| 5 mm | Drawer bottoms, cabinet backs, light partitions, signage substrate |
| 8–10 mm | Shutter cores, cabinet internals, bathroom panelling, vanity doors |
| 12 mm | Vanity carcass sides, utility cabinet bodies, short shelves carrying light loads |
| 16–18 mm | Under-sink carcasses, balcony storage units, bathroom vanity bodies |
| 20–24 mm | Worktop substrate in wet areas, heavier carcass work, outdoor-adjacent joinery |
Nothing on that list is a long shelf or a loaded span. That is deliberate.
The specification that actually works
Most of the kitchens and bathrooms we see are not an argument between two materials. They are one cabinet run that needs two.
Kitchen. BWR plywood for the carcasses, drawers and shelving. PVC foam board for the sink base — the cabinet that sits under the trap, takes every leak, and is the one that comes back. If budget allows only one substitution in the whole kitchen, it is that one.
Bathroom. PVC foam board for the vanity body and anything below counter height. Plywood above it if there is a tall unit carrying weight.
Balcony and utility. PVC foam board throughout for anything with a floor-level base, because these are the rooms that get hosed down and the ones with the least ventilation afterwards. Watch the heat limit if the balcony is glazed and faces west.
Wardrobes, bookshelves, TV units, anything that spans. Plywood. We have written separately on how to read a plywood grade and what mandatory ISI marking changed — the short version is that BWP is no longer one thing, and the sheet should carry an ISI mark with a BIS licence number you can check.
Common questions
Is PVC foam board waterproof? Yes, in the sense that matters: it does not absorb water, so it does not swell, delaminate or rot. It is not a structural material and being waterproof does not make it one.
Can PVC foam board replace plywood everywhere? No. It is roughly half as stiff as plywood and it creeps under sustained load. Use it where water and termites are the risk, not where weight and span are.
Does PVC foam board take laminate? Yes — laminate, acrylic laminate, veneer, PVC laminate and paint all bond to it with the appropriate adhesive. It also takes edge-banding. Confirm the adhesive is rated for PVC; a contact adhesive meant for wood-to-wood is not always the right one.
What thickness of PVC foam board for a bathroom vanity? 16 or 18 mm for the carcass body, 8 to 10 mm for shutters and internal partitions. Below 8 mm is a substrate, not a carcass.
Will PVC foam board sag? On a long span or under sustained weight, yes. Keep shelves short, support them, or use plywood or blockboard instead. This is the single most common way the material gets specified wrongly.
Does PVC foam board expand in heat? It moves about ten times as much as wood does with temperature — three to four millimetres across a full 8 ft sheet for a 25°C swing. Allow for it on long runs and do not fix a wide panel rigidly along its whole length.
Is PVC foam board termite-proof? Yes. There is no cellulose in it, so there is nothing for a termite to feed on.
What sizes and thicknesses are available in Hyderabad? We carry 2.5 mm to 24 mm in 8 × 4 ft (2440 × 1220 mm) sheets, including the thin sizes that are usually hard to source locally in any depth.
Specifying boards for a project in Hyderabad or Secunderabad? Send us the thickness and quantity on WhatsApp at +91 98666 07766 and we will come back with trade rates and what is on the floor. If you want to judge it yourself first, ask for a sample piece and let your fitter put a screw into it. Designers and fabricators welcome at the godown, Monday to Saturday.
