Charcoal Panels vs Louvers: Which One Your Wall Actually Needs

Most people asking for “charcoal” mean one of two quite different products, and the difference is not cosmetic. One is a 3–4 mm sheet — a skin you stick to a wall. The other is a 12 mm louver — a profile that stands off it.

They cost differently, install differently, and fail differently. Here is how we talk it through at the godown.

The short answer

• Charcoal sheet (panel) — 3–4 mm, in 8 × 2 ft and 8 × 4 ft, in a large range of embossed textures and patterns. A continuous decorated surface. Fast, cheap per square foot, and the right answer when the pattern is the point.
• Charcoal louver — 12 mm (up to 25 mm), in 8 ft × 5 in planks, clip-on. A ribbed, slatted line with real shadow and depth. Slower, dearer per square foot, and the right answer when you want the wall to have relief rather than a picture.
• The thing that decides most jobs: a sheet is a surface, not a board. At 3–4 mm it has no structural capacity and it telegraphs whatever is behind it.

The numbers that actually matter on site

That coverage row is the one worth writing down. A single 8 × 4 sheet does the work of about ten louver planks. That is most of the cost and labour difference in one line.

Where the sheet is the right call

Large flat areas where the pattern is the design. A TV wall, a headboard run, a lift lobby. The sheet gives you a finished decorated surface in one pass.

Speed. One 8 × 4 sheet covers 32 sq ft. Compared with cladding the same wall in planks, it is not close.

Tight budgets with high visual ambition. The embossed and gold-inlay patterns read as far more expensive than they are, which is exactly why they sell.

Covered outdoor and damp areas. Waterproof and termite-proof, so it holds up where a timber-based panel would not — covered facades, balcony walls, bathroom feature walls above splash height.

Where the sheet loses — the honest part

3–4 mm telegraphs everything. This is the single most common complaint and it is not a product defect. A sheet that thin follows the wall underneath it. A wavy plaster finish, a proud patch, a skim line — all of it shows through in raking light. The substrate has to be flat and sound, and if it is not, that is a plastering job before it is a cladding job.

The joints will be visible. On anything wider than 4 ft you are butting sheets together, and on a dark patterned surface you can see the line. Good work plans the joints into the design — aligning them with a TV, a column, or a change of plane — rather than hoping they disappear.

Nothing fixes into it. There is no holding power in 3–4 mm. A TV bracket, a shelf, a heavy mirror — all of it must go through the panel and into the wall or a batten behind. Tell the fitter where the loads are before the panel goes up, not after.

It is polystyrene-based, so it moves and it softens. Expect thermal movement on long runs and leave an allowance. Keep it away from direct afternoon sun behind glass, and away from anything that gets hot. The same caution applies here as to any PVC-family sheet.

Fire is a real question for commercial work. Polystyrene is combustible. B1-rated variants are common in this category, but the rating belongs to a specific sheet, not to the category. If your project carries a written fire specification, ask us for the certificate on the exact design before you order and we will quote something that passes — or tell you plainly if we cannot.

Where the louver is the right call

When you want shadow, not a picture. A louver has genuine depth, so the wall changes through the day as the light moves. A printed or embossed sheet cannot do that.

Breaking up a long wall. Vertical lines shorten a corridor visually and add rhythm where a flat surface would read as a slab.

Over an imperfect substrate. This is the practical one. Louvers clip on and stand off the wall, so they forgive the unevenness that would show straight through a 3–4 mm sheet. On an old wall, the louver is often the cheaper answer once you count the plastering you did not have to do.

Ceilings and soffits. The profile reads well overhead, where a flat pattern tends to disappear.

Where the louver loses

Cost and labour. Ten planks instead of one sheet, each aligned and clipped. It shows in both the material bill and the fitting time.

Dust. A ribbed profile collects it, and horizontal runs collect it faster. In a home that is a dusting job; over a kitchen it is a worse one.

It is visually loud. In a small room, a full wall of louver can close the space down. Often the better move is a louver panel as a feature and flat sheet or paint elsewhere.

The specification most rooms actually want

Not one or the other across the whole job.

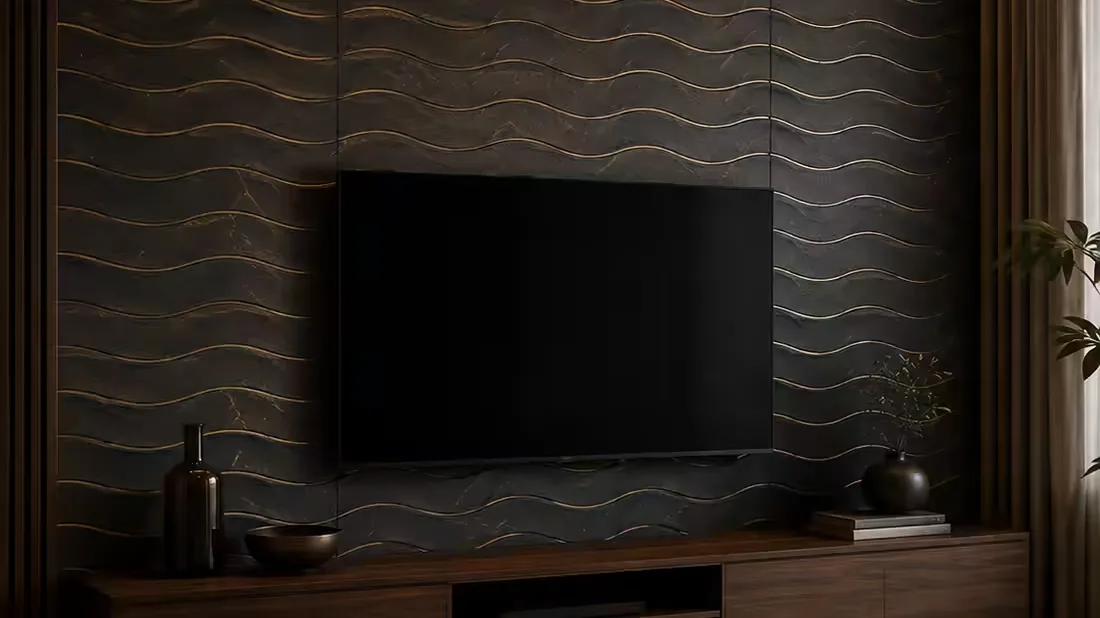

• TV wall — sheet behind the screen, where the pattern is seen and nothing hangs off it; louver returning down one side to give the composition depth. That is exactly what the picture at the top of this page is doing.
• Bedroom — sheet behind the headboard. The pattern does the work and the bed hides the bottom edge.
• Corridor — louver. Vertical line shortens it; a flat pattern over that length just reads as wallpaper.
• Office reception — sheet for the broad logo wall, louver for the desk front.
• Covered balcony — either, but check the sun. A west-facing glazed balcony is the one place we would hesitate on both.

For a wet-area carcass behind any of this — a vanity, an under-sink run — neither is the material. That is PVC foam board against plywood, which is a different question one layer down.

Common questions

What is a charcoal panel made of? A charcoal–polystyrene composite — bamboo charcoal combined with high-grade polystyrene. It is not wood and it is not charcoal in the barbecue sense; the charcoal content is a filler that gives the material its colour and body.

How thick are charcoal sheets? 3–4 mm. They are a cladding skin, not a board. Charcoal louvers are 12 mm, with the range running up to 25 mm.

What size do charcoal sheets come in? 8 × 2 ft and 8 × 4 ft. That is 16 and 32 sq ft of coverage per sheet respectively.

How many charcoal sheets do I need? Divide your wall area in square feet by 32 for 8 × 4 sheets, or by 16 for 8 × 2, then add a sheet for cuts and waste. A 10 ft × 8 ft wall is 80 sq ft, so three 8 × 4 sheets.

Are charcoal panels waterproof? Yes, and termite-proof. They suit covered outdoor cladding, bathrooms above splash height and balcony walls.

Can I fix a TV to a charcoal panel? Not to the panel. At 3–4 mm there is no holding power. The bracket goes through into the wall or a batten behind, which means deciding the TV position before the panel goes on.

Why can I see the joints between sheets? Because sheets are 2 or 4 ft wide and a wall is usually wider. The joints are inherent; good installations design them in rather than trying to hide them.

Charcoal panel or louver for a TV wall? Most often both — sheet behind the screen, louver to one side for depth. Sheet alone if the budget is tight; louver alone if the wall behind is uneven.

Do charcoal panels need a flat wall? Yes. At 3–4 mm the sheet follows whatever is underneath it, and an uneven wall shows through in raking light. Louvers are far more forgiving because they stand off the surface.

How many designs are there? A large range — embossed textures, patterns, wave and damask profiles, gold inlay lines, plain slate. More than can usefully be listed on a page, so ask for the current catalogue and we will send what is actually on the floor.
